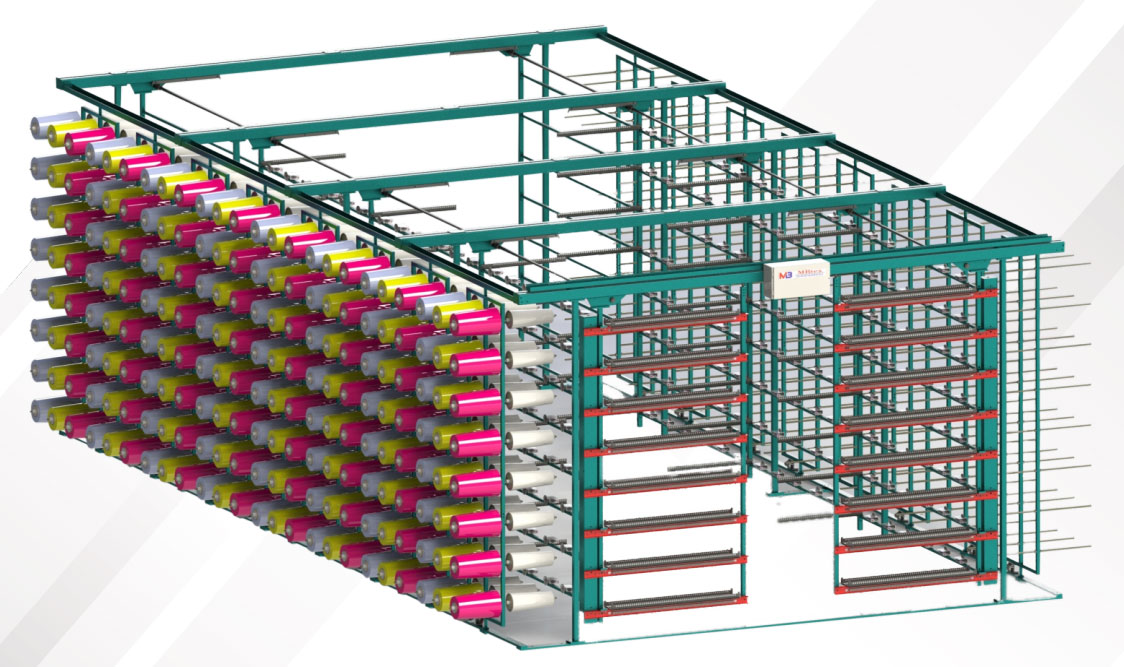

Manufacturer of creels for the textile industry
Creels are essential machinery in the warping and sometimes weaving process. MBtex Engineering, a manufacturer of machinery and equipment for the textile industry based in Lombardy, specializes in the production of high-quality creels.
- Product Features
- Vibration free, very sturdy, mild steel fabricated structure.
- All thread guides are made from ceramic.
- Multi pillar Tensioner with adjustable manually tension control.
- Magazine frame locking with foot paddle.
- Stop motion photo cell type.
- Standard pitch is 240 / 280mm.
Stop Motion

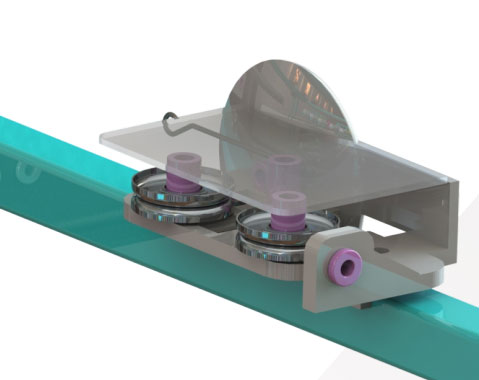

Tensioner
- Technical Specifications
| 1 | PITCH IN MM | 180 X 180 | 240 X 240 | 280 X 280 | 320 X 320 |
| 2 | NO FOR TIER | 10 | 8 | 8 | 6 |
| 3 | CONES IN EACH MODULE | 1160 | 96 | 96 | 60 |
| 4 | RANGE OF ENDS | 160-960 | 96-960 | 96-960 | 60-600 |
| 5 | CREEL HEIGHT | 2400 mm | 2400 mm | 2680 mm | 2400 mm |
| 6 | LENGTH OF MODULE | 1440 mm | 1440 mm | 1680 mm | 1600 mm |
- Benefits
- Advance creeling is possible during warping operation, will be improving.
- Machine productive time.
- New cones positioning very fast.
- Reduce floor area of working for next set of cone package.
- Revolving type Magazine frame hold both side cone.
- Yarn Draw-off inward type.
- Loading and unloading of cone packages' is use to machine operator from outside.
